Product Details:
Payment & Shipping Terms:
|
| Material: | Natural Rubber | Color: | Black |
|---|---|---|---|
| Protective Sleeve: | Tyre-chain Net, Rubber Tube For Option | Lifespan: | 6-10 Years |
| IP: | 50KPa/80KPa (0.05MPa/0.08MPa) | Warranty: | 12 Months/24 Months |
| Application: | Docking Anti-collision | Diameter: | 0.5-6m |
| Length: | 1-10m | Key Word: | Mooring Rubber Fender |
| High Light: | Inflatable Rubber Wharf Fender,Marine Rubber Wharf Fender,Ccs Certification Pneumatic Rubber Fender |
||

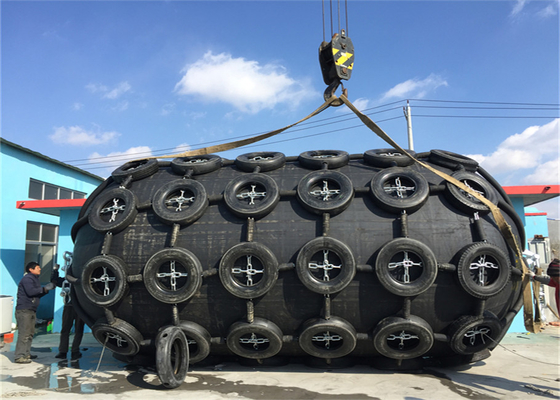

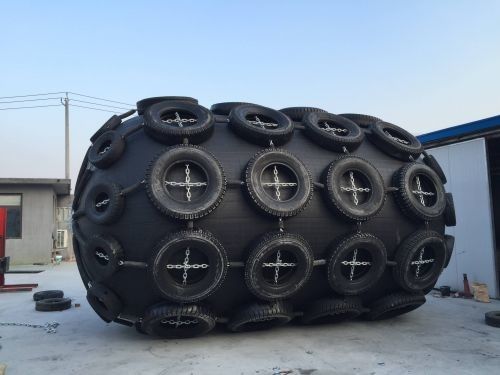

1. Pneumatic rubber fender introduction

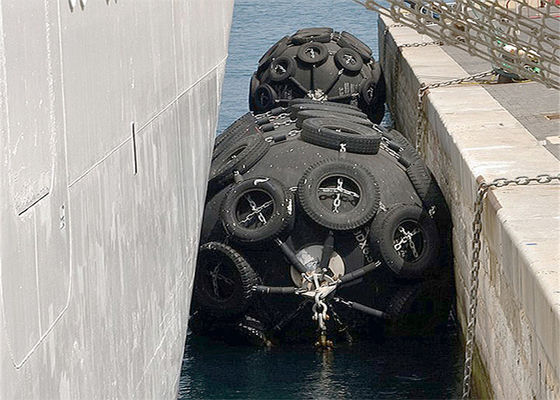

The fender is mainly to withstand the impact force of the ship when the ship is docking, leaving the dock and other forms (such as when the ship is tied to tow), and transmits it to the hull structure of a larger area. Wooden fenders have buffering effect. Although steel fenders have poor buffering effect, they have better strength and can be included in the section of the hull girder (the welding strength must be guaranteed). Especially for large-open deck barges, they can make up for the deck The lack of effective cross-sectional area is conducive to longitudinal strength. Steel materials cannot be used for the fenders of oil barges and small oil tankers.
Large seagoing vessels usually do not have fenders. River boats, work boats, permanent double-track fenders, one of which is located on the upper deck, and the other is located slightly higher than the designed waterline.
2.Pneumatic rubber fender Parameter
| Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) |
Weight with Protective Jacket (kg) |
||
|
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNM) |
||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
|||||
3. Pneumatic Rubber Fender Features
* Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
* Comprehensively tested for material and hydrostatic pressure irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification

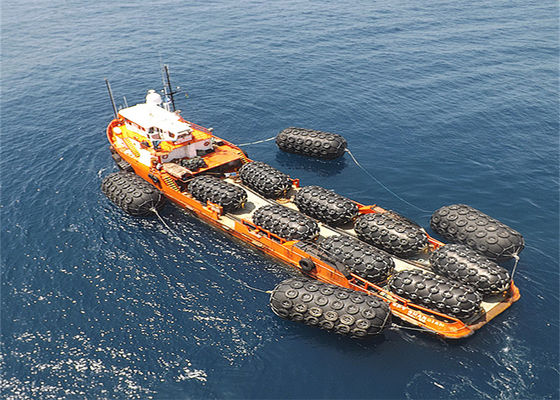

4. Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
5. Specially Designed and Strengthened Casting Flange
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
