Product Details:
Payment & Shipping Terms:
|
| Part: | Buoy | Material: | Steel |
|---|---|---|---|
| Color: | Customers' Requirments | Application: | Mooring |
| Size: | Customized | Usage: | Temporary Mooring |
| High Light: | High Buoyancy Steel Mooring Buoy,Steel Mooring Buoy For Yacht,Steel Floating Marine Buoys |
||
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage. goods lightering works, maintenance & repair of ships can be operated on the berth. Therefore, the mooring buoy is an important anchoring facility of the port.
Sturcture and Material of Steel Mooring and Support Buoys
Steel mooring buoy is a drum made of steel plate of 10mm thickness. Inside is filled with closed cell PE foam. It can prevent water flowing in in case of any broken and eventually provents the buoy from sinking into water. There is a steel pipe through the drum body for anchor chains.
The coating of buoy can be marine painting or sprayed with SUPA, which is better than painting for anti-uv.
Mooring Buoys have different sizes, each of which has related buoyance for certain anchoring tonnage case.
| Type | Buoyancy (without chain) (0 | Diameter X Height (m) | Suftable for Ship Tonnage (t) |
| 2.0 | 3 | 2.0x1.74 | <2000 |
| 2.6 | 6 | 2.6x2.27 | <5000 |
| 3.6 | 19 | 3.6x2.14 | <10000 |
| 5.0 | 28.5 | 5.0x3.4 | <12000 |
| 5.5 | 31.2 | 5.5x3.0 | <100000 |
| 6.0 | 34.2 | 6.0x3.2 | <150000 |
| 8.0 | 40.3 | 8.0x2.46 | <250000 |
Main Features of Steel Mooring Buoys
1. High Corrision Resistance
2. Convenient Maintenance and Less Maintenance Cost
3. Fully Welded and Sealed Unsinkable Structure
4. Good Water-Proof Performace
5. Reducing Collision with Boats
6. Strong Buoyance
7. Environmental Protection

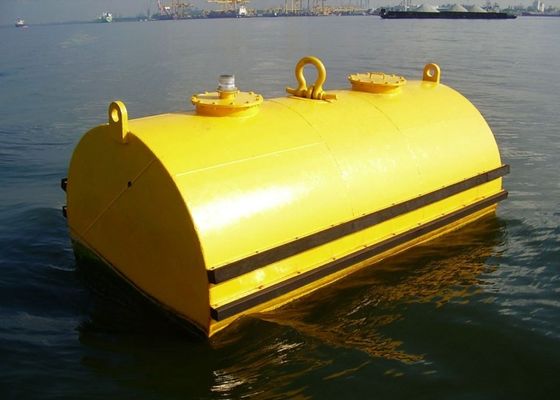

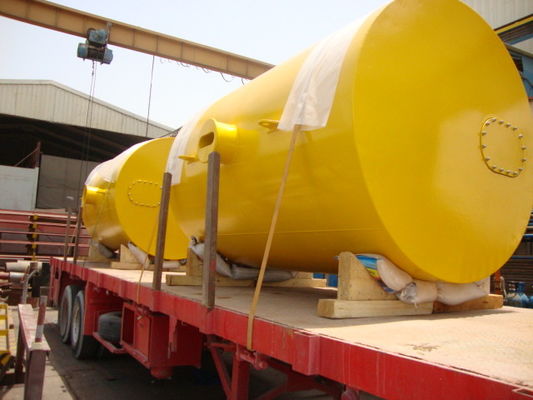

Pictures of Our Steel Mooring Buoys
