Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS | Part: | Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender |
|---|---|---|---|
| Color: | Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color | Material: | Natural Rubber,EPDM,SBR,SILICONE,EVA |
| Application: | STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat | Size: | Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m |
| Name: | Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag | Product Name: | Pneumatic Rubber Fender,Marine/Dock Fender |
| Warranty Period: | 24 Months,3 Years | Type: | DO,50Kpa,Pneumatic,D,UV-protection |
| Packing: | Normal Packing,Nude Packing/As Requirement,Standard Package | Warranty: | 24 Months |
| Diameter: | 0.5m-3.3m,0.5~4.5m | Usage: | Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat |
| Length: | 0.5m~12.0m,1.0m-6.5m,1~9m | Chain: | 312,hot Galvanizing Or Stainless Steel(304,316) |
| Quality: | Excellent | Design Using Life: | 10 Years |
| Feature: | Aging Resistance | ||
| High Light: | Ribbed Yokohama Marine Rubber Fender,2500mm x 5500mm Marine Rubber Fender,Yokohama Marine Dock Corner Bumpers |
||

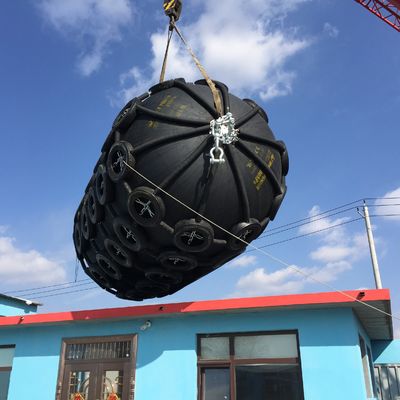

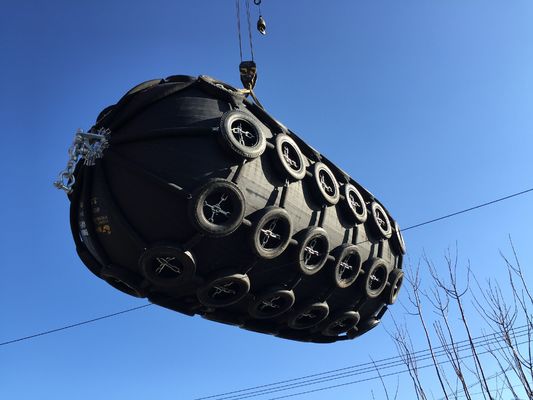

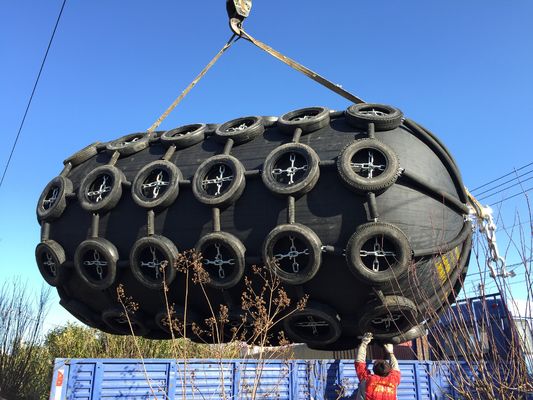

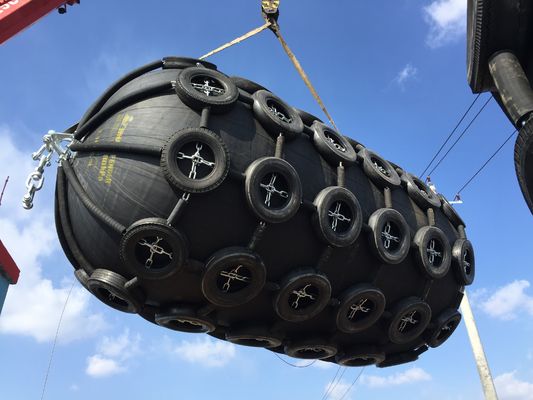

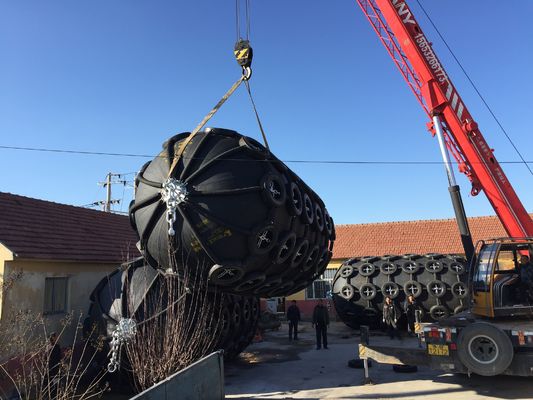

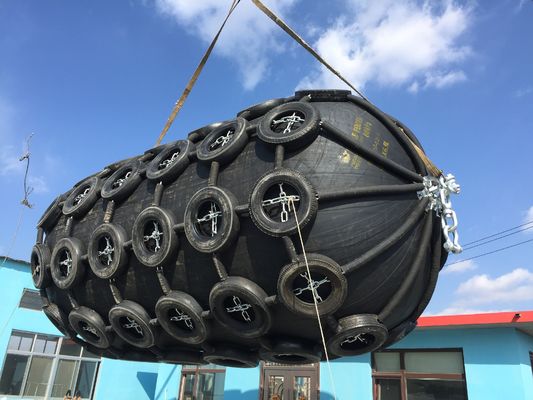

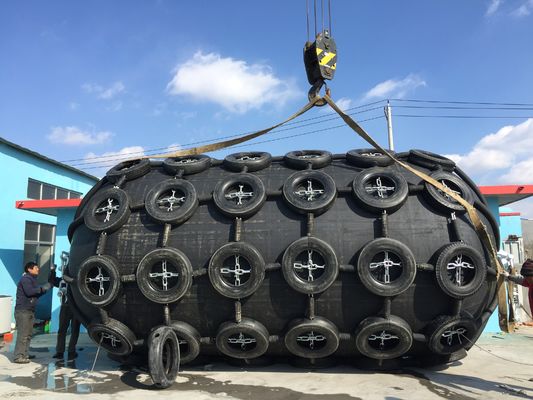

Tire mesh type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls. The tires can be selected from airplane tires and truck tires.
Qingdao Henger Ship Supplies Co., Ltd.
We are a manufacturer of marine supplies, and our products involve many areas of marine use! The photo below is a product map of my company!
Because we are a manufacturer, our prices are very competitive!
Ship docking, ship launching, ship mooring, ship navigation, we can provide you with products in all fields. We are the largest production base in Qingdao. Our products are self-made and sold, and no third-party traders earn the difference!
If you want to work with us, please contact me!
My email address: tom-li@hengergroup.com
My WhatsApp: +86 15662503695
My WeChat: Lxc667381
Our company website: www.pneumaticrubberfenders.com
Ribbed Pneumatic Rubber Fender Introduction:
What type do we have?
Tire mesh type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls. The tires can be selected from airplane tires and truck tires.
Rubber net type: A special rubber pad is tied to the ball, which can be freely contracted or stretched when squeezed. Suitable for small and medium-sized reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.
Introduction:
Ribbed Pneumatic Rubber Fender use compressed air as a buffer medium, so that the ship has a better anti-collision effect when it is close to the ship or dock, and better protects the ship.
Fender Rubber Marine Characteristic:
●The outer wear resistance of the fender is strong
●Strong pressure bearing capacity of fender
●The rubber used in the fender is resistant to aging
●Long service life of fender
●The air tightness of the fender is very good
●The fender is easy to store after use and can be folded
●The fender is not deformed after use
●Easy to install the fender
Ribbed Pneumatic Rubber Fender Functions & Applications
●The fender can be installed on the wharf and dock for mooring
●The fender is installed on the ship for berth
●The fender can be used as a float chamber
●The fender can be used to carry heavy cargo
●The fender can be used for pipe sealing
The following are the marine jetty fenders specifications and detailed parameters:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN | Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length |
Initial internal pressure |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN | Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
1. Production advantage
Qingdao Hunger has accumulated 20 years of professional rubber product production experience. It is an excellent company in the region, with strong technology and capital, and a supplier of stable quality marine fenders and airbags.
2. Quality advantage
Qingdao Hengge has raw material testing equipment, production equipment and finished product testing equipment in the industry. Use high-content rubber and have a certificate. It is the first product to pass the ISO 9001: 2000 international quality management system certification, and its products are sold all over the world. The excellent quality has been confirmed by many buyers.
If you have any needs, you can contact me at any time, hoping to reach a good cooperative relationship. thanks for watching.
Contact Person: Tom
Tel: 15662503695
