Product Name: | Pneumatic Rubber Fender/Marine Fender/Yokohama Fender | Brand: | Henger |
---|---|---|---|
Material: | Natural Rubber | Specification: | Dia 0.5m-4.5m, L 0.7m-9m/Customized |
Certificate: | CCS / BV / LR / ISO17357/DNV/SGS | Shelf Life: | 24 Months |
Working Pressure: | 50kpa/80kpa | Application: | Dock,Ship,Ship To Ship |
Service Life: | 10 Years | Production Time: | 5-10 Days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, Moneygram | Accessories: | Tyre Sheath/Swivel/Shackle/Chain |
Packing: | Naked/Pallet | Colour: | Black/Blue/As Requirements |
High Light: | Natural Rubber Inflatable Marine Fender,50kpa Inflatable Marine Fender,50kpa Pneumatic Type Fenders |
Introduction of inflatable rubber fender
Qingdao Henger Ship Supplies Co., Ltd.
Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
What type do we have?

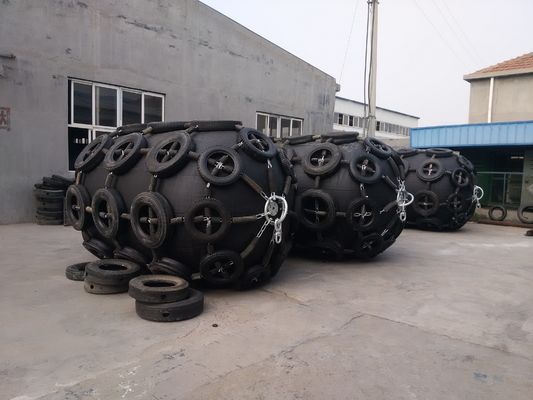

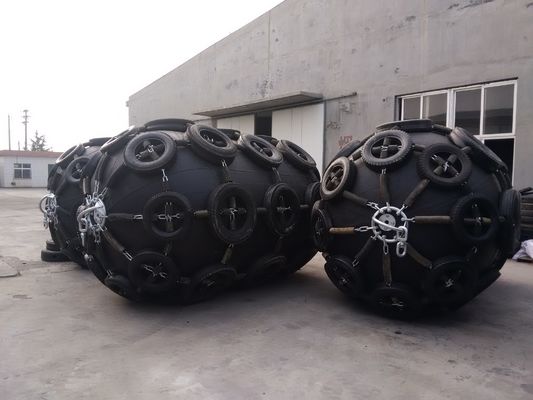

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.
Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.
How does the fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
♦ Definition:
The pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
♦ Characteristic:
● External wear resistance
● Bearing pressure
● Ageing resistance
● Long service life
● Good air tightness
● Easy storage
● Non deformation
● Simple installation
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
● Pipe seal
Pneumatic 50 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
500 x 1000 | 50 | 6 | 64 | 132 |
600 x 1000 | 50 | 8 | 74 | 126 |
700 x 1500 | 50 | 17 | 137 | 135 |
1000 x 1500 | 50 | 32 | 182 | 122 |
1000 x 2000 | 50 | 45 | 257 | 132 |
1200 x2000 | 50 | 63 | 297 | 126 |
1350 x 2500 | 50 | 102 | 427 | 130 |
1500 x 3000 | 50 | 153 | 579 | 132 |
1700 x 3000 | 50 | 191 | 639 | 128 |
2000 x 3500 | 50 | 308 | 875 | 128 |
2500 x 4000 | 50 | 663 | 1381 | 137 |
2500 x5500 | 50 | 943 | 2019 | 148 |
3300 x 4500 | 50 | 1175 | 1884 | 130 |
3300 x 6500 | 50 | 1814 | 3015 | 146 |
3300 x 10600 | 50 | 3067 | 5257 | 158 |
4500 x 9000 | 50 | 4752 | 5747 | 146 |
4500 x 12000 | 50 | 6473 | 7984 | 154 |
Pneumatic 80 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
500 x 1000 | 80 | 8 | 85 | 174 |
600 x 1000 | 80 | 11 | 98 | 166 |
700 x 1500 | 80 | 24 | 180 | 177 |
1000 x 1500 | 80 | 45 | 239 | 160 |
1000 x2000 | 80 | 63 | 338 | 174 |
1200 x 2000 | 80 | 88 | 390 | 166 |
1350 x 2500 | 80 | 142 | 561 | 170 |
1500 x 3000 | 80 | 214 | 761 | 174 |
1700 x 3000 | 80 | 267 | 840 | 168 |
2000 x 3500 | 80 | 430 | 1150 | 168 |
2500 x 4000 | 80 | 925 | 1815 | 180 |
2500 x 5500 | 80 | 1317 | 2653 | 195 |
3300 x 4500 | 80 | 1640 | 2476 | 171 |
3300 x 6500 | 80 | 2532 | 3961 | 191 |
3300 x 10600 | 80 | 4281 | 6907 | 208 |
4500 x 9000 | 80 | 6633 | 7551 | 192 |
4500 x 12000 | 80 | 9037 | 10490 | 202 |
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.
"Yokohama Pneumatic Inflatable Rubber Fender " progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating pneumatic fenders are used world wide for
ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
After contacting a dock, a ship is usually shifted to the correct mooring position. The
shifting exerts shearing and compression forces on the fenders. This combined force is
very severe in the case of solid rubber fenders because they are not reinforced against
such force. In contrast, Yokohama Pneumatic Rubber Fenders are adequately
reinforced using strong tire-cord to cope against such forces as well as internal
pressure.

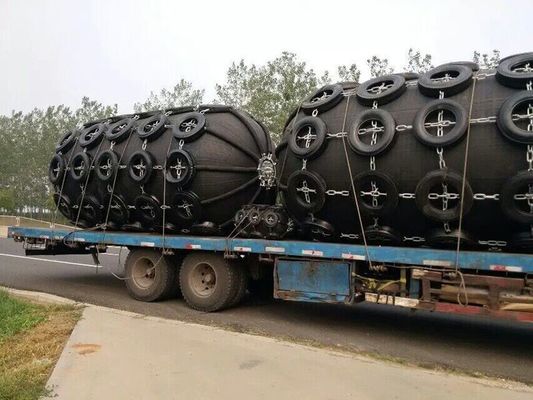

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
