Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS LRS GL SGS BV | Delivery Time: | 7-10days |
|---|---|---|---|
| Product Nam: | Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag | Size: | D15*L20m Ship Launching Airbag |
| Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers | Maximum Load: | 250T/ M |
| Warranty Period: | 12 Months | Application: | Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag |
| Packing: | Nude Packing / According To Shipping Requirements | Working Pressure: | 0.08Mpa |
| High Light: | Marine Heavy Lifting Airbags,Dry Dock Heavy Lifting Airbags,Dry ship launching marine airbags |
||

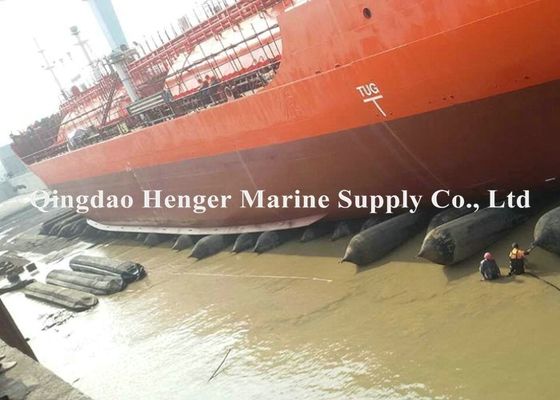

Marine Heavy Lifting Airbags And Dry Dock Launching Lifting Ship And Marine Airbag

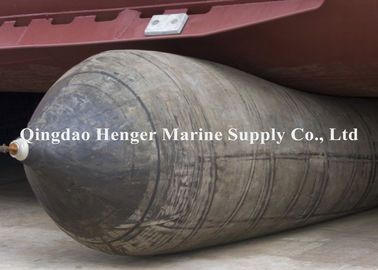

Marine Rubber Airbag introduction:
Our ancestors began to use the logarithmic rolling method to lift and move heavy objects 6000 years ago, and still use heavy objects in daily production and real life. The Marine Heavy Lifting Airbags is designed with soft rubber, which can lift and carry heavy objects according to the logarithmic rolling method.
When bonding between two different rubber materials, if the polarity or degree of unsaturation between the two is quite different, in order to ensure the bonding effect, when the product rubber is pasted and formed, a transitional intermediate glue should be used. Floor. For example, when the unvulcanized butyl rubber is pasted with natural materials, a chlorobutyl rubber spoon and a chloroprene limb can be used and the system rubber material can be used as a transition layer.
When the Marine Heavy Lifting Airbag is squeezed, the partial wall of the airbag will produce wrinkles. Under the influence of the convergent stress of the wrinkles, the layout of the reinforcing fibers is very easy to delaminate, and the rupture will cause the reinforcing fibers in the bag wall to break, leading to the rupture of the entire airbag. The airbag developed by us has been developed from two aspects: rubber formulation and manufacturing technology. It has been modified and improved the tear strength and soft pressure resistance of the layout.
Inflatable Marine Rubber Airbag Technical Parameter:
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) | |||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
|
S11 |
0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
|
S12 |
0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 |
S20 |
1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
|
S21 |
1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
|
S22 |
1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 |
S30 |
1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 |
||
Higher flexibility and shock absorption ability:

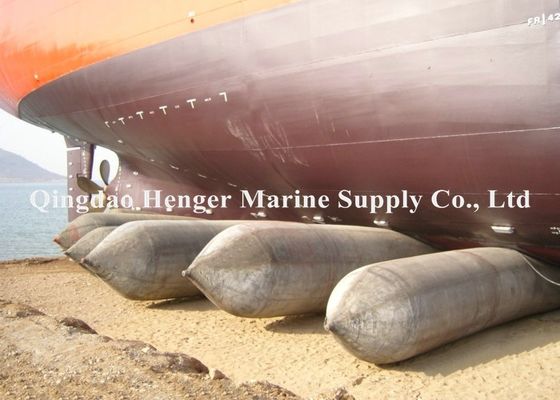

The thickness of the wall of the upgraded marine inflatable rubber airbag is uniform, and there is no seam caused by overlap. Therefore, under the condition of sufficient strength, the Marine Heavy Lifting Airbags can be made thinner, softer and more elastic. When the airbag rolls under the bottom of the ship, the collision pressure with the bottom of the ship will be smaller, and it has a higher shock absorption capacity. When the working air is steep, this soft elasticity is not conducive to eliminating layout pressure and reducing the hazards of water on the ship.
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
| High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
Qingdao Henger Shipping Supplies Co., Ltd
Henger is a comprehensive marine supplies company with experienced and skilled research, development, production and sales teams. The company's products use high-quality materials and special explosion-proof technology, with smooth appearance, wear resistance, aging resistance, good air tightness, high strength, long life and excellent quality. All products have passed ISO9001: 2000 international quality management system certification and China Classification Society (CCS) quality certification, and are exported to Britain, Italy, Germany, Pakistan, Malaysia, Singapore, South Korea and other countries and regions.
