Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance

Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance
Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance

Large Image :  Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS.ABS.LRS.BV.GL.DNV.NK
Model Number: D700mm*L1500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Naked/Pallet
Delivery Time: 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40 Pcs Per Week
Detailed Product Description
Product Name: EVA Foam Fender/Foam Solid Filled Fender/Solid Fender Material: High Density Foam/Polyurea Coating
Specification: DIA 0.5m-4.5m, L 0.7m-9m/Customized Certificate: CCS / BV / LR / ISO17357/DNV/SGS
Shelf Life: 24 Months Service Life: 10-15 Years
Application: Dock,Ship,Ship To Ship Production Time: 5-10 Days
Accessories: Tyre Sheath/Swivel/Shackle/Chain Color: Orange/Gray/Black/Customized
High Light:

Foam Cylindrical Rubber Fender

,

Dia 4.5m Cylindrical Rubber Fender

,

Dia 4.5m marine rubber fenders

Marine Solid Foam Cylindrical Fender And High Performance Foam Fender

Sling Type Portable Foam Filled Marine Boat Fender Introduction

The foam-filled fender is a new type of fender, and the interior is filled with environmentally friendly material EVA, which is hydrophobic and does not absorb water even if it is broken. The outer surface has a protective layer of polyurea material coating. Polyurea is a new material with adjustable high elastic modulus. There are galvanized flanges and swivel shackles at both ends of the fender. Like the inflatable rubber fender, the tire chain protective net cover is also an optional spare part of the foam-filled fender, which has better anti-collision performance and is available for customers to choose.

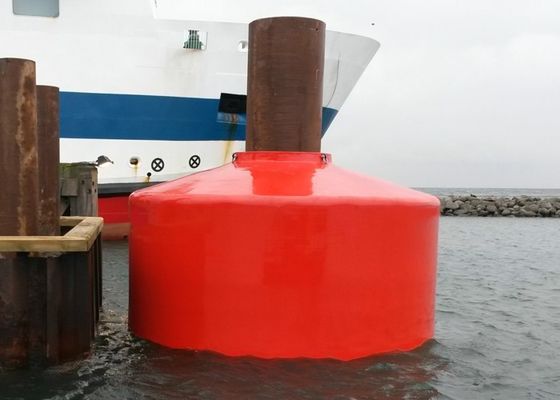

Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance 0





pecifications of Sling Type Portable Foam Filled Marine Boat Fender

Hunger polyurethane Eva foam fenders are made of high-quality, high-density Evafoam and new formulas for coating polyurea, so EVA foam fenders have beautiful colors and very durable performance.

Internal: We use high-density closed-cell EVA foam to fill, non-absorbent and high buoyancy.

Exterior: We coat high-quality polyurea elastomer on the exterior, the surface is bright and clean and has a certain degree of flexibility, which can increase the performance of the fender

Both ends: For small polyurethane eva foam fenders, ropes hanging on both sides can be used. For large EVA foam fenders, chains and flanges will be used for connection.

Shape: We can design according to the customer's size, shape and color, or make a rope net or tire chain net on the outside to protect the fender, or we can recommend it according to the customer's place of use.





Foam fender parameters:



Model

D

(mm)

L

(mm)

Compression 60% Reference Weight(kg)
Counter-force(KN)

Energy Absorption

(KJ)

Ø 500×1000L 500 1000 71 8 34
Ø 600×1000L 600 1000 86 12 45
Ø 700×1500L 700 1500 161 27 101
Ø 1000×1500L 1000 1500 205 49 206
Ø 1000×2000L 1000 2000 274 64 275
Ø 1200×2000L 1200 2000 337 93 405
Ø 1200×2400L 1200 2400 390 110 475
Ø 1350×2500L 1350 2500 463 145 626
Ø 1500×3000L 1500 3000 624 216 927
Ø 1700×3000L 1700 3000 696 273 1191
Ø 2000×3500L 2000 3500 990 456 1923
Ø 2000×4000L 2000 4000 1110 505 2298
Ø 2200×4500L 2200 4500 1396 679 2992
Ø 2500×4000L 2500 4000 1386 781 3434
Ø 2500×5000L 2500 5000 1750 985 4272
Ø 3000×5000L 3000 5000 2050 1410 6411
Ø 3000×6000L 3000 6000 2460 1695 7293
Ø 3300×6500L 3300 6500 2950 2245 8335
Ø 4500×9000L 4500 9000 19650 7860 21460

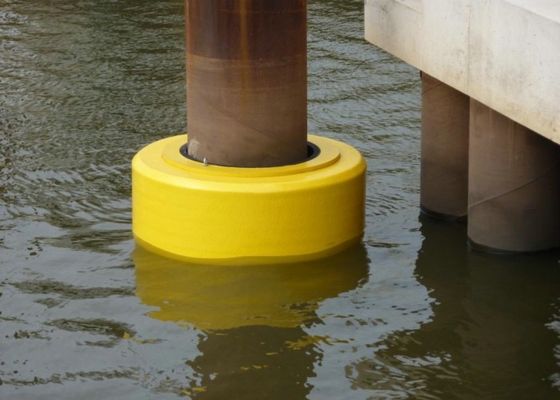

Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance 1





Features of our Sling foam filled fender:



Henger's foam fenders are fully compliant with ISO 9001 standards, and colors and specifications can be customized.

The diameter ranges from 300 mm to 4500 mm, and the length ranges from 500 mm to 9000 mm. Customers can also customize the specifications according to their needs.

Foam fenders are suitable for piers and ships with large differences in tidal changes, as well as between ships and emergency uses. Because of their easy buoyancy, they are easier to install and load. PLT-PF foam fender has good floating characteristics and no tidal range, so it can keep the fender at the ideal waterline.

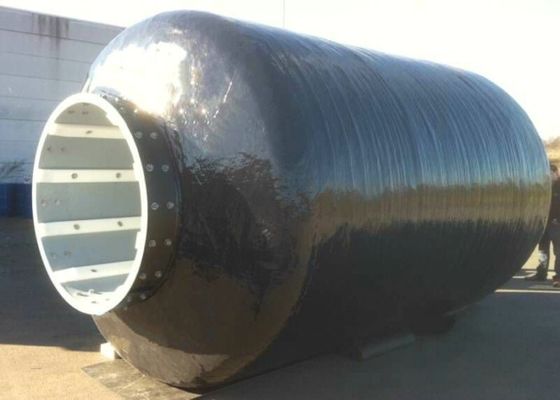

Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance 2



Henger's Boat Fender Advantage

●EVA fender has good hydrophobicity

●The exterior of EVA fender is coated with high performance, which can resist corrosion and cracking

●The installation of EVA fender is quick and easy

●EVA fenders are available in a variety of colors and can be customized

●EVA fender has a variety of forms and size options

●EVA fender has high energy absorption capacity and low reaction force.

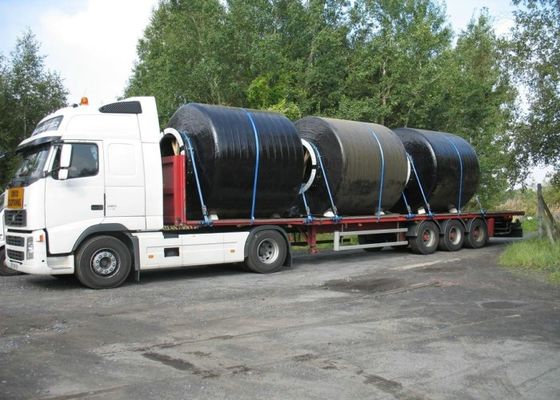

Marine Solid Foam Cylindrical Rubber Fender dia 4.5m High Performance 3



EVA Polyurethane Foam Filled Floating Fender Application



Foam fenders are suitable for heavy harbours and dolphin wharves with large tidal changes and between ships.

EVA foam can be used as a bridge pier protection board

EVA foam is a fender that can protect special military fleets or submarines

EVA foam is used together with other forms of fenders, such as pneumatic rubber fenders, hydro-pneumatic fenders, etc., the effect will be better.
