9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender

9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender
9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender
video play

Large Image :  9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: Iso 9001、BV、ccs
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: paller
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Brand: Henger
Material: Natural Rubber Size: 0.5*1m~4.5*9m
Certification: CCS/BV/ABS/ISO17357/ISO9001 Warranty: 24 Months
Working Pressure: 50kPa/80kPa Usage: Dock Protection/ship Protection/ship To Ship Protection
Production Time: 5-8 Days Color: Black/blue/as Requirements
Diameter: 0.5m~4.5m Length: 1.0m~9m
Using Life: 10years Payment Method: D/A, L/C, D/P, T/T, Western Union, MoneyGram
High Light:

Marine Pneumatic Rubber Fender

,

80kPa Pneumatic Rubber Fender

,

9m Pneumatic Rubber Fender

Pneumatic Rubber Fender At The Price Of a Chinese Manufacturer With a Rubber Content Of More Than 60%

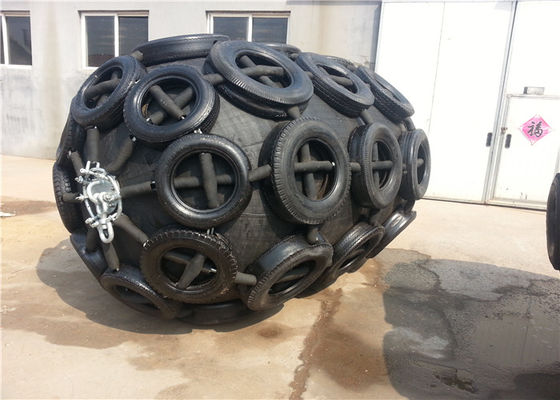

Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.





The following are the product specifications and detailed parameters:





Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154






Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202



Qingdao Henger suspension type inflatable rubber leaning ball is the leaning ball with no mesh tire sheath outside the surface. There are hoisting and rotating devices on both sides of the leaning ball, which is convenient for moving and makes the leaning ball more flexible during work. Respond to various angles of impact. Ship rubber fenders play a vital role in berthing between ships and berths.



9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 0


Product Features of Qingdao Henier Rubber Relying Ball:


1. Qingdao Henger inflatable rubber reliant ball uses high-quality natural rubber as raw material, and adds various auxiliary materials such as styrene butadiene rubber. The formula is reasonable, so that it has durable anti-aging ability and wear resistance. The rubber content can reach more than 60%, and the rubber tensile strength exceeds 20Mpa.


2. The skeleton material of Qingdao Henger inflatable rubber ball is a single three-strand superior nylon dipped cord fabric, and the breaking strength of the single cord fabric is 313.6N, which greatly improves the product performance and service life.


3. Qingdao Henger can use advanced three-dimensional animation simulation technology to conduct simulation experiments on the connection speed, buffer force, and collision direction when docking between ships (ships and docks) to calculate the maximum ball landing The stress factors can lead to the most reasonable structural layout, which effectively ensures the protection and safety of the ship.


4. Qingdao Henger marine fender production technology adopts the latest integral winding type, which has superior performance and exceeds national standards.


5. The jacket produced by Qingdao Henger Marine Products uses aircraft tires as the first choice for jacket, which is more durable.



9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 1



Yokohama fender Features:



1. Large compression deformation, low reaction force, large energy absorption


2. Good floating performance, able to adapt to changes in tide level


3. Use compressed air as the medium, and use compressed air to do work to consume collision energy


4. Simple installation and long service life



9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 2





QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD





Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.







1. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.


2. Production advantages
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.



9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 3


3. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.


4. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.



5. Service advantages
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.





9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 4





Pneumatic Rubber Fender



Made of natural rubber, the warranty period can reach two years.





Internal structure drawings:



9m Length 50kPa 80kPa Marine Pneumatic Rubber Fender 5


Service and transportation:


The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.





Thank you for reading. If you have any needs and interests, you can contact me.
