Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

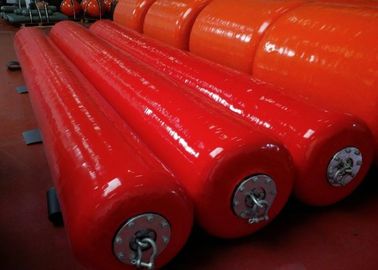

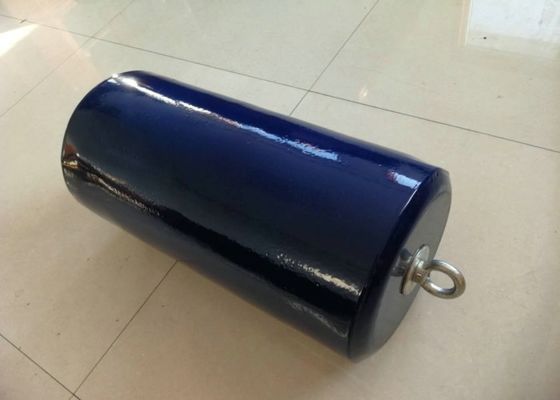

Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket

Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket
Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket

Large Image :  Energy Absorption Solid Polyurethane Foam Filled Fender with Jacket

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Part: Foam Filled Fender,marine Foam Fender PVC Fender Color: Black,Red,Orange,blue
Application: Floating,Ship Protection,mooring Fender Material: Polyourethane Foam,Natual Rubber
Size: Customized Size,as Per Customer's Request Name: Foam Filled Fender,Floating Dock Marina Manofacturer
Diameter: 0.5m~3.3m,0.3-3.0m Length: 0.5-6.0m,500mm~ 6000mm
Warranty Period: 24 Months
High Light:

Polyurethane Foam Filled Fender

,

Solid Foam Filled Fender

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender



EVA Polyurethane Foam Filled Floating Fender Introduction

Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation.

Henger Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.





EVA Polyurethane Foam Filled Floating Fender Structure

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender

Tyre & Chain Net Type



High Energy Absorption Polyurethane Foam Filled Solid Floating Fender



Pure Sling Type



Inside of Foam Filled Solid Fender is filled with environmental protection material-EVA with coating protective layer of polyurea material on outer surface. Polyurea is an new material of adjustable high-elasticity modulus. There are galvanized flange and swivel on the fender two ends. Like pneumatic rubber fender, tyre-chain net protective jacket is also optional spare part to foam filled fender for better anti-collision performance.





EVA Polyurethane Foam Filled Floating Fender Product Feature

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender

Henger Invented new foam fender manufacturing method with blind hole hydrophobic foam as core and polyurea as outer coating, which has following features:



  • Good Hydrophobicity

The core material of Henger foam filled fender is bind hole hydrophobic foam with light weight and good energy absorption capability. It wont absorb water even cracking



  • High Performance of Outer Coating Layer

The polyurea protective coating has very good performance of anti collision, anti friction, compression resistance, oil proof, water proof and weather fastness.



  • Fast and Easy Installation

The fender is made with flange and swivel for fast installation, customer could install it very fast without any professional guidance from experts.

High Energy Absorption Polyurethane Foam Filled Solid Floating FenderHigh Energy Absorption Polyurethane Foam Filled Solid Floating Fender



  • Multiple Color Options

The appearance color could be customized in any colors appointed by customer with provided PANTONE.





  • Multiple Form & Size Options

The fender is made of high plasticity foam, whose appearance form and dimensional size are highly customizable.





varrious colors, forms & sizes for option

  • High energy absorption capability and lower reaction force.



EVA Polyurethane Foam Filled Floating Fender Application

  • Harbors, ships

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender

  • gravity wharf and dolphin type quay, especially for wharves with bigger

tidal range



  • STS, STD operation

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender

  • Protective fender for bridge pier
  • Protecting fender for special military fleet or submarine
  • Applied together with other forms of fender like pneumatic rubber fender, hydro pneumatic fender, etc.

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender



EVA Polyurethane Foam Filled Floating Fender Product Advantage

High Energy Absorption Polyurethane Foam Filled Solid Floating Fender

  • Good floatability makes the installation site not affected by tidal range.
  • Non-pneumatic operation, free from scratch and fiction,seawater corrosion resistance and high salt-alkalia tolerance, longer service life up to 15 years without regular maintenance.
  • Higher safety factor, free from explosion risk.



EVA Polyurethane Foam Filled Floating Fender Technical Parameter Table



Model

D

(mm)

L

(mm)

Compression 60% Reference Weight(kg)
Counter-force(KN)

Energy Absorption

(KJ)

Ø 500×1000L 500 1000 71 8 34
Ø 600×1000L 600 1000 86 12 45
Ø 700×1500L 700 1500 161 27 101
Ø 1000×1500L 1000 1500 205 49 206
Ø 1000×2000L 1000 2000 274 64 275
Ø 1200×2000L 1200 2000 337 93 405
Ø 1200×2400L 1200 2400 390 110 475
Ø 1350×2500L 1350 2500 463 145 626
Ø 1500×3000L 1500 3000 624 216 927
Ø 1700×3000L 1700 3000 696 273 1191
Ø 2000×3500L 2000 3500 990 456 1923
Ø 2000×4000L 2000 4000 1110 505 2298
Ø 2200×4500L 2200 4500 1396 679 2992
Ø 2500×4000L 2500 4000 1386 781 3434
Ø 2500×5000L 2500 5000 1750 985 4272
Ø 3000×5000L 3000 5000 2050 1410 6411
Ø 3000×6000L 3000 6000 2460 1695 7293
Ø 3300×6500L 3300 6500 2950 2245 8335
Ø 4500×9000L 4500 9000 19650 7860 21460

if there is customizing size requirement, please kindly contact our sale service staff.
