0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag

0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag
0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag
video play

Large Image :  0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV / CCS / ISO9001
Model Number: D1.5m*L18m
Payment & Shipping Terms:
Minimum Order Quantity: 1PCs
Packaging Details: Pallet Package
Delivery Time: 7
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300 Pieces per months
Detailed Product Description
Part: Marine Airbag Application: Heavy Lifting
Material: Natural Rubber Color: Black
Size: Customized Size Product Name: Inflatable Marine Rubber Airbag For Ship Launching Made In China
Name: Pneumatic Marine Rubber Airbags Diameter: 0.8 /1.2 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m
Usage: Ship Launching Packing: Pallet
Lifespan: 8~10 Years Certification: CCS,ABS,BV,LR,CCS BV GL
Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers Working Pressure: 0.05MPa-0.17MPa
High Light:

Ship Launching Marine Rubber Airbag

,

Lifting Marine Rubber Airbag



0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag

Product Advantage

New Anti-explosion Design of End Part



The possibility of air leakage in the joint area of metal part and rubber part is also increasing as working pressure of airbag is added. After using for times under high working pressure, the airbag would burst and metal part would hurt workers.

Henger invented new anti-explosion design of the airbag end part, increasing the bonding strength and air tightness between rubber body part and end metal part. Henger airbag is working very well under higher working pressure without potential safety hazard.



0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag 0

Marine Rubber Airbag introduction

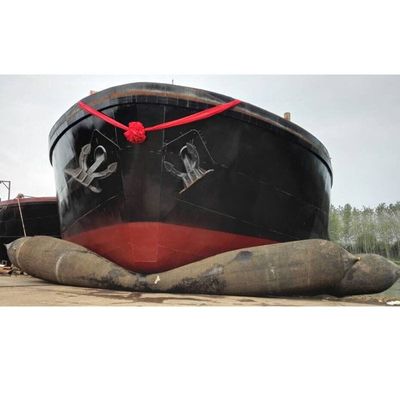

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.





Marine Rubber Airbag Parameter



Diameter(m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure
(4-5)
Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure
(6-8)
Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13



2. Marine Rubber Airbag Application

Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.



0.05MPa Mechanical Lifting Ship Launching Marine Rubber Airbag 1





►Company introduction

Qingdao Henger Shipping Supplies Co., Ltd

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.





Why do customers like to choose us?
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with free.
Our advantages

1.We have more than 10 years of production experience in airbags, marine fenders and other marine supplies, and have our own production workshop with rich experience.

2.We are a manufacturer and we can communicate directly, which saves us a lot of time.

3.Regarding delivery, our manufacturer can do some adjustment, if there is an urgent need, we can arrange production for you in advance.

4.There isn't any middleman between us, the price will be very competitive.
