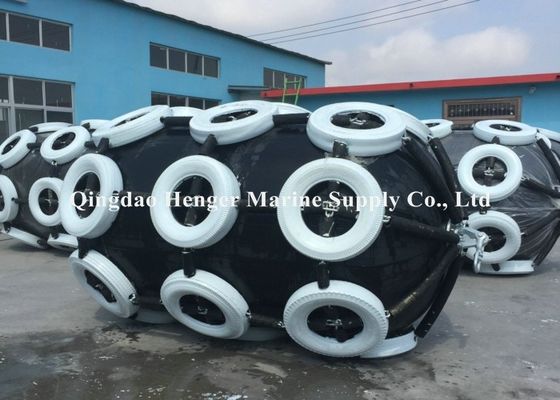

Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa

Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa
Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa

Large Image :  Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )
Model Number: Can Be Customized According to Customer Needs ,Minimum diameter 500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 5000-10000 USD
Packaging Details: nude packing or customized
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Factory direct supply
Detailed Product Description
Material: Black Color: Black
Protective Sleeve: Tyre-chain Net, Rubber Tube For Option Lifespan: 6-10 Years
IP: 50KPa/80KPa (0.05MPa/0.08MPa) Warranty: 12 Months/24 Months
Application: Docking Anti-collision Diameter: 0.5m-6m
Length: 1m-10m
High Light:

inflatable marine fenders

,

hydro pneumatic fender

,

Yokohama Type Pneumatic Rubber Fender

50-80KPa Yokohama Type Inflatable Marine Rubber Fender Pneumatic Floating Fender

Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa 0



1. Floating Rubber Fenders Introduction



The "Floating Rubber Fenders " was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating Rubber Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.





2. Floating Rubber Fenders Types

fender type1

there are many type of penumatic rubber fenders with various functions based on different protective jacket and design.

Henger could provide OEM service and technical design based on customer requirement and actual demand. contact our sales service for more details.





3. Floating Rubber Fenders Product Show





Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa 2





4. Floating Rubber Fenders Structure



12_conew1

Yokohama Type Pneumatic Rubber Fender with Initial Pressure 0.05 - 0.08MPa 4





5. Floating Rubber Fenders  Manufacturing Process

1212



6. Floating Rubber Fenders Advantages



6.1. Safety and Reliability

Henger Floating Rubber Fenders  are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.



6.2. No Deterioration or Variation in Performance

Henger Floating Rubber Fenders  utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.



6.3. Advantages at Inclined Berthing

Henger Floating Rubber Fenders energy absorption does not decrease at inclined compression up to 15 degrees.

fender



6.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Pneumatic Rubber Fenders ideal. The surface pressure of the Inflatable Rubber Fenderis equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals.



6.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Floating Rubber Fenders  does not increase sharply, even under excess load conditions. Therefore, the Henger Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.



6.6. Lower Mooring Forces under Rough Weather Conditions

the reaction force and deflection of HengerFloating Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.



7. Floating Rubber Fenders Technical Parameter



pneumatic fender  (14).jpg



Fender Size Compression Amount (60%)

Noumenon Weight

(Kg)

Weight with Protective Jacket

(Kg)

D

(mm)

L

(mm)

Reaction

(KN)

Energy Absorption

(KNm)

500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000

* 1. above penumatic fenders parameter is based on of 0.05Mpa internal pressure,there is also & 0.08Mpa type for choice, kindly contact our service consultant for more details and competitive prices.



* 2. penumatic fender size could be customized according to customer requirement.



* 3. all accessorires could be customized according to customers' requirement or drawings.





8. Floating Rubber Fenders Model Selection

floating fender



 for Small & Middle Size Ship

Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship





 for Large-tonnage Ship

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5





9. Floating Rubber Fenders Practical Use



pneumatic fender  (20)



Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier



Qingdao Henger Marine Supply Co., Ltd

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.



pneumatic fender  (10)



Exhibition





Packing & Delivery

pneumatic fender  (13)

* all packing method and shipping method of pneumatic rubber fenders are done as per to csutomer's requirement.





FAQ



Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes


Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.



Q: What is your company address and contact information ?

A: Qingdao Henger Marine Supply Co., Ltd

Address: Jinkou Industry Park, Jimo District, Qingdao City, Shandong Province, China

Post Code: 266200

Tel: +86-0532-58913181

E-mail: anna@hengergroup.com;
